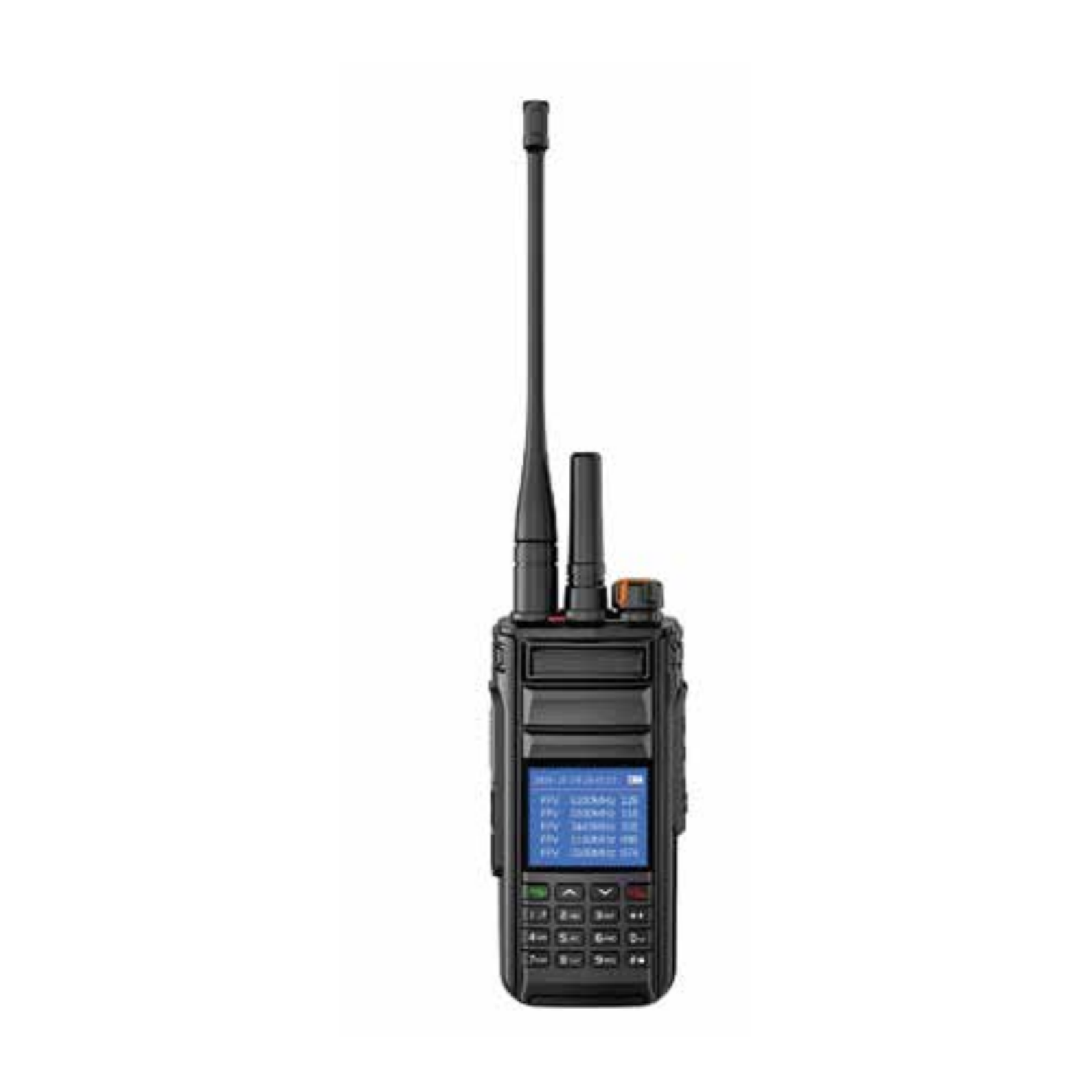

IRONCLAD HANDHELD SHIELD SCOUT
Shield Scout is a handheld ultra-wideband drone detection unit built on a superheterodyne architecture. It detects OFDM
high-de nition image transmission signals from mainstream DJI and Autel drones across the 100 MHz – 8 GHz range, as well
as analog image transmission signals used by DIY and racing drones. Dual antennas and multi-channel simultaneous scanning
give operators fast detection speed, high sensitivity, long detection range, and a low false alarm rate in a compact eld-portable
form factor.
Advantages:
- Full-spectrum coverage from 100 MHz to 8 GHz — no blind bands
- Compatible with mainstream drones (DJI, Autel) and DIY / racing platforms
- Dual-antenna, multi-channel simultaneous scanning
- Fast detection, high sensitivity, low false alarm rate
- Field-deployable in extreme conditions (−20°C to +60°C, IP54)
- Links via magnetic interface to backpack-style countermeasure equipment for integrated detect-to-counter operation
Features
Handheld drone detector
Frequency 300 MHz – 6.2 GHz
Detection range ≥ 1 km
Battery life ≥ 6 hrs
Key Specifications
| Detection Frequency Band | 300 MHz – 6.2 GHz |
| Detection Type | OFDM digital image transmission + analog FPV |
| Detection Range | ≥ 1 km |
| Detection Sensitivity | Better than −96 dBm |
| Alarm Modes | Headphone + external sound and light |
| Log Capacity | Micro-USB |
| Battery Life | ≥ 6 hours (single battery) |
| Dimensions | 135 × 60 × 35 mm (excl. antenna) |
| Weight | 500 g (incl. single battery) |
